Strap On Temperature Sensor
£16.35 – £23.80Price range: £16.35 through £23.80 Exc. VAT
The TE-S range of strap-on temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The lead is 1m long with tails and the sensor is housed in a shaped brass lug for surface temperature measurement.
The TE-S range of strap-on temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The lead is 1m long with tails and the sensor is housed in a shaped brass lug for surface temperature measurement.

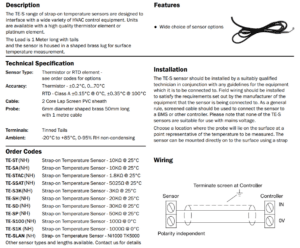

Specification
Sensor Type:Â Â Â Â Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy:       ± 0.2°C, 0…70°C
Cable:Â Â Â Â Â Â Â Â Â Â Â 2 core lap screen PVC sheath
Probe:Â Â Â Â Â Â Â Â Â Â Â Â 6mm diameter shaped brass 50mm long with 1-metre cable
Terminals:Â Â Â Â Â Â Â Tinned Tails
Ambient:       -20°C to +85°C, 0-95% RH non-condensing
| Weight | 0.56 kg |
|---|---|
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
