Duct Averaging Temperature Sensor
£81.10 Exc. VAT

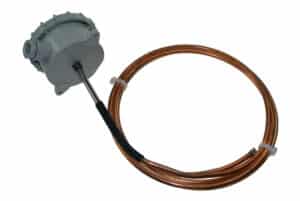

The TE-AV range of duct averaging temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing has a quick-release lid for ease of installation and a gasket for sealing to the duct. The probe is flexible copper and is available in standard 2 metre length.
The TE-AV range of duct averaging temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing has a quick-release lid for ease of installation and a gasket for sealing to the duct. The probe is flexible copper and is available in standard 2 metre length.

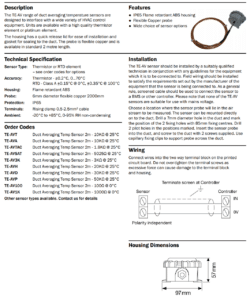

Specification
Sensor Type:Â Â Â Â Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy:       ± 0.2°C, 0…70°C
Housing:Â Â Â Â Â Â Â Â Flame retardant ABS
Probe:Â Â Â Â Â Â Â Â Â Â 6mm diameter flexible copper 2000mm
Protection:Â Â Â Â Â Â IP65
Terminals:       Rising clamp 0.5-2.5mm² cable
Ambient:       -20°C to +85°C, 0-95% RH non-condensing
| Weight | 0.56 kg |
|---|---|
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
