The CS series current sensors devices monitor the current flowing to electrical equipment or buildings. The magnitude of this current is then converted into a linear 4-20mA or 0 to 10 VDC output signal, which can be monitored by a Building Management System. The units have jumper selectable input ranges. These current sensors should be used in load trending (current monitoring) type applications and are fast-acting, accurate, reliable, and extremely easy to install.
Current Sensors
Current Switches
CSW Solid Core and Split Core Current Switches 1-200A
The CSW series of AC current switches activate a normally open (NO) contact closure via a solid-state switch whenever the monitored primary circuit current exceeds a pre-set level.
Current Monitoring Relay
The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the volt free contact at a set current, also there is an adjustable time delay to eliminate current peaks. It can also be used with a current transformer to monitor higher currents. It has an LED indication and is Din-rail mounting.
EB-303 Current Bar
The EC is a current sensor for standard miniature circuit breakers (MCB). It is designed to fit any type of IEC standard MCB, Residual-Current Devices (RCD), and Residual-current Circuit Breakers with Overload protection (RCBO) capable of measuring devices up to 40A. The EC includes a current transformer (CT) with turn ratio of 1:1000 and a burden resistor of 10Ω. The EC does not interfere with or affect the function of the MCB.
EB-306 Current Bar
The EC is a current sensor for standard miniature circuit breakers (MCB). It is designed to fit any type of IEC standard MCB, Residual-Current Devices (RCD), and Residual-current Circuit Breakers with Overload protection (RCBO) capable of measuring devices up to 40A. The EC includes a current transformer (CT) with turn ratio of 1:1000 and a burden resistor of 10Ω. The EC does not interfere with or affect the function of the MCB.
EB-312 Current Bar
The EC is a current sensor for standard miniature circuit breakers (MCB). It is designed to fit any type of IEC standard MCB, Residual-Current Devices (RCD), and Residual-current Circuit Breakers with Overload protection (RCBO) capable of measuring devices up to 40A. The EC includes a current transformer (CT) with turn ratio of 1:1000 and a burden resistor of 10Ω. The EC does not interfere with or affect the function of the MCB.
LoRa Wireless RS485 transmitter and receiver with LCD screen – 2 Units
The LoRaWAN Data Transmission Terminal is a universal communication interactive equipment that is designed and manufactured based on LoRa RF chip.
It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realise the data transmission between wired and wireless devices.
It supports LoRaWAN Class C protocol. It can be widely applied in the IoT, centralised metering and industrial control etc.
LoRa Wireless RS485 transmitter or receiver with LCD screen – 1 Unit
The LoRaWAN Data Transmission Terminal is a universal communication interactive equipment that is designed and manufactured based on LoRa RF chip.
It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realise the data transmission between wired and wireless devices.
It supports LoRaWAN Class C protocol. It can be widely applied in the IoT, centralised metering and industrial control etc.

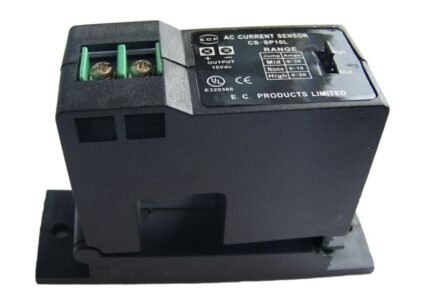

Solid Core and Split Core Current Sensors, 0-10, 0-20, 0-50, 0–100, 0-150, 0-200 A, output 0-10VDC or 4-20-mA
The CS series current sensors monitor the current flowing to electrical equipment or buildings. The magnitude of this current is then converted into a linear 4-20mA or 0 to 10 VDC output signal, which can be monitored by a Building Management System.

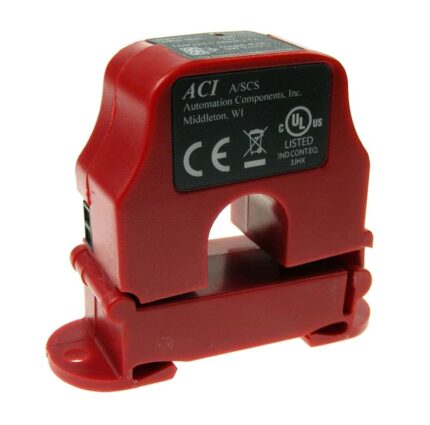

Solid Core and Split Core Current Sensors, 0–100, 0-200, 0-250 A, average output with 0-10VDC or 4-20-mA
The CTA (Current Output - 4-20mA) /CTV (Voltage Output 0-10VDC) Series current sensors monitor the current flowing to electrical equipment or buildings.
