Strap On Temperature Sensor with IP65 Housing
Price range: £21.75 through £28.10 Exc. VAT
The TE-S range of strap-on temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing has a quick release lid for ease of installation and the sensor is housed in a shaped copper lug for surface temperature measurement.
The TE-S range of strap-on temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing has a quick-release lid for ease of installation and the sensor is housed in a shaped copper lug for surface temperature measurement.

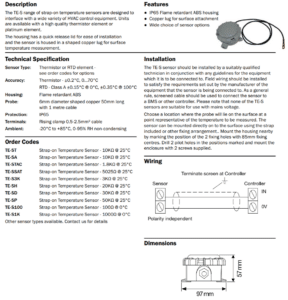

Specification
Sensor Type:Â Â Â Â Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100 (2 & 3 wire), PT1000 and SAT1
Accuracy:       ± 0.2°C, 0…70°C
Housing:Â Â Â Â Â Â Â Â Flame retardant ABS
Probe:Â Â Â Â Â Â Â Â Â Â Â Â 6mm diameter shaped copper 50mm long with a flat edge for pipe mounting and with 1-meter cable from housing.
Protection:Â Â Â Â Â Â IP65
Terminals:       Rising clamp 0.5-2.5mm² cable
Ambient:       -20°C to +85°C, 0-95% RH non-condensing
| Weight | 0.56 kg |
|---|---|
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1, PT100-3Wire |
