Stainless Steel Thimble Temperature
Price range: £32.00 through £38.40 Exc. VAT

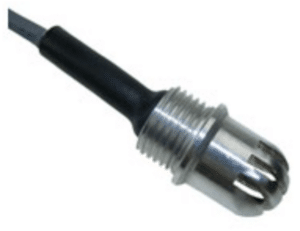

The TE-T range of thimble temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The sensor is housed in a stainless steel thimble type enclosure with optional white plastic, brass, polished brass or stainless steel versions also available.
The TE-T range of thimble temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The sensor is housed in a stainless steel thimble type enclosure with optional white plastic, brass, polished brass or stainless steel versions also available.
Specification
Sensor Type:Â Â Â Â Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy:       ± 0.2°C, 0…70°C
Housing:Â Â Â Â Â Â Â Stainless Steel
Protection:Â Â Â Â Â Â IP30
Termination:Â Â Â Â 2 meters of PVC flying lead
Ambient:        0°C to +50°C, 0-95% RH non-condensing
| Weight | 0.56 kg |
|---|---|
| Dimensions | N/A |
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
