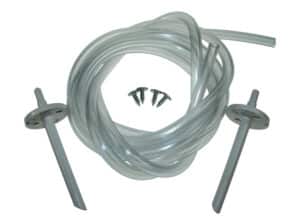

Air Differential Pressure Switch IP65 with Duct Kit
£49.35 Exc. VAT
This 930 range of air differential pressure switches are suitable for low differential switching applications and are ideal for providing an indication of fan status or ‘filter dirty’ conditions.
Description
This 930 range of air differential pressure switches are suitable for low differential switching applications and are ideal for providing an indication of fan status or ‘filter dirty’ conditions.
Specification
Max. Operating Pressure: 50 mbar
Pressure Connections: 6mm ID push-on tubing
Electrical Rating: 1.5A (0.4) @ 250Vac
Approvals: Switch according to VDE0630UG1652
Connections: Via 0.25” receptacles
Cable Entry: M20
Housing Material: Plastic moulding
Protection: IP65 mounted in 150 x 110 x 75mm enclosure c/w nipples.
Ambient Range: -20ºC to +85ºC
Installation Category: IEC 664 Category II
Pollution Degree: IEC 664 Degree 1
Replace your old pressure sensor and Pitots.
Replace your old weathered sensor https://client.voidloop.site

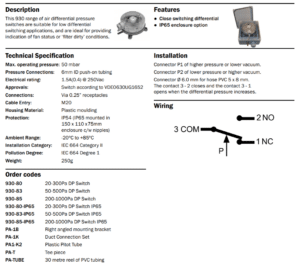

PDF Datasheet
Datasheet
| Weight | 0.40 kg |
|---|---|
| Dimensions | 8 × 7 × 5 cm |
| Pressure | 20-300Pa, 50-500Pa, 200-1000Pa |
