Liquid Pressure Switch -0.5-7 bar
£41.00 Exc. VAT

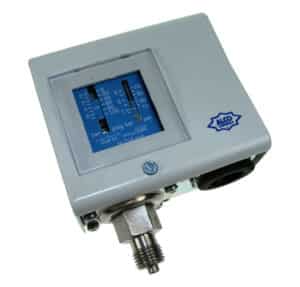

The PS1 is a cost-effective pressure switch suitable for monitoring pumps, chillers, valves, etc. The unit has an adjustable setpoint with adjustable differential and has a gauge to show the liquid pressure.
Description
The PS1 is a cost-effective pressure switch suitable for monitoring pumps, chillers, valves, etc. The unit has an adjustable setpoint with adjustable differential and has a gauge to show the liquid pressure.

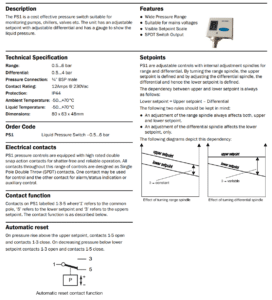

Specification
Range: 0.5…6 bar
Differential: 0.5…4 bar
Pressure Connections: ¼” BSP male
Contact Rating: 12Amps @ 230Vac
Protection: IP44
Ambient Temperature: -50…+70°C
Liquid Temperature: -50…+70°C
Dimensions: 80 x 63 x 48mm
| Weight | 0.40 kg |
|---|---|
| Dimensions | 8 × 7 × 5 cm |
