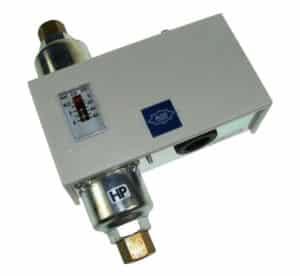

Liquid Differential Pressure Switch 0.3-4.5 bar – FD113
£90.80 Exc. VAT
The FD113 is a differential pressure switch that is used for monitoring flow status across pumps, chillers, etc. The unit has an adjustable setpoint with scale and ¼” BSP female pipe connections.
Description
The FD113 is a differential pressure switch that is used for monitoring flow status across pumps, chillers, etc. The unit has an adjustable setpoint with scale and ¼” BSP female pipe connections.
Specification
Range: 0.3…4.5 bar
Switching Differential: 0.2 bar
Pipe Connections: ¼” BSP female
Ambient Temperature: -20…+70°C
Liquid Temperature: 0 to 110°C
Switch Rating: 5(3)A @ 240Vac
Protection: IP30
Dimensions: 128 x 175 x 48mm
| Weight | 0.79 kg |
|---|---|
| Dimensions | 16 × 11 × 6 cm |
