Space Temperature Sensor
Price range: £10.10 through £17.25 Exc. VAT

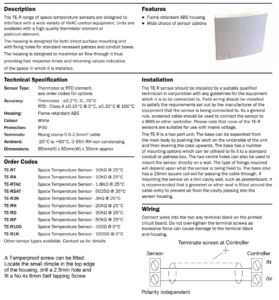

The TE-R range of space temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing is designed for both direct surface mounting and fixing holes for standard recessed patress and conduit boxes. The housing is designed to maximise airflow through it thus providing fast response times and returning values indicative of the space in which it is installed.
The TE-R range of space temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing is designed for both direct surface mounting and fixing holes for standard recessed patress and conduit boxes. The housing is designed to maximise airflow through it thus providing fast response times and returning values indicative of the space in which it is installed.
Specification
Sensor Type:Â Â Â Â Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy:        ± 0.2°C, 0…70°C
Housing:Â Â Â Â Â Â Â Â Â Flame retardant ABS
Colour:Â Â Â Â Â Â Â Â Â Â Â Â White
Protection:Â Â Â Â Â Â Â IP30
Terminals:        Rising clamp 0.5-2.5mm² cable
Ambient:        -20°C to +60°C, 0-95% RH non-condensing
Dimensions:Â Â Â Â Â Â 85(H) x 85(W) x 30mm approx.
| Weight | 0.56 kg |
|---|---|
| Dimensions | N/A |
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
