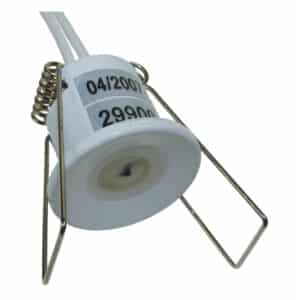

Ceiling Mounted Temperature Sensor
£45.45 Exc. VAT
Small built-in temperature sensor for in-wall installation. It is preferably installed in walls and ceilings, fitting in well with the overall view of architecture.
Small built-in temperature sensor for in-wall installation. It is preferably installed in walls and ceilings, fitting in well with the overall view of architecture.

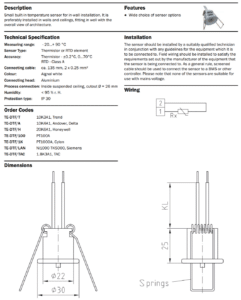

Specification
Sensor Type:Â Â Â Â Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy:               ± 0.2°C, 0…70°C
Connecting Cable:      ca. 135mm, 2 x 0.25mm²
Colour:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Aignal white
Connecting Head:Â Â Â Â Â Â Aluminium
Process Connection:   Inside suspended ceiling, cutout Ø = 26mm
Humidity:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â < 95% RH
Protection Type:Â Â Â Â Â Â Â Â IP30
| Weight | 0.56 kg |
|---|---|
| Dimensions | N/A |
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
