24 Channel Digital Input Multiplexer – VFC input
The IOD24 module was created and designed to provide a cost-effective and efficient way of handling a large amount of digital input into a Building Management System (BMS). 24 Digital Inputs are multiplexed to provide a single analogue output (0-10V or 4-20mA) which is compatible with most open standard BMS controllers on the market currently.
24Vac to 24Vdc @ 1A power supply (floating 0V)
EB-303 Current Bar
The EC is a current sensor for standard miniature circuit breakers (MCB). It is designed to fit any type of IEC standard MCB, Residual-Current Devices (RCD), and Residual-current Circuit Breakers with Overload protection (RCBO) capable of measuring devices up to 40A. The EC includes a current transformer (CT) with turn ratio of 1:1000 and a burden resistor of 10Ω. The EC does not interfere with or affect the function of the MCB.

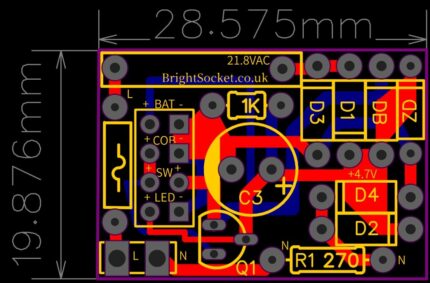

Emergency Light Socket Components to build your own emergency light socket
All components (excluding 2 gang socket) are required to build your own Emergency Safety Socket.
The appliance operates similarly to the existing socket until it detects the power is removed when it automatically switches to battery operation and illuminates the bright light-emitting diodes.
The rechargeable battery enables the light-emitting diodes to stay on independently for up to three hours or until the electrical power returns.
iPhone dock
LoRa Wireless RS485 transmitter and receiver with LCD screen – 2 Units
The LoRaWAN Data Transmission Terminal is a universal communication interactive equipment that is designed and manufactured based on LoRa RF chip.
It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realise the data transmission between wired and wireless devices.
It supports LoRaWAN Class C protocol. It can be widely applied in the IoT, centralised metering and industrial control etc.
LoRa Wireless RS485 transmitter or receiver with LCD screen – 1 Unit
The LoRaWAN Data Transmission Terminal is a universal communication interactive equipment that is designed and manufactured based on LoRa RF chip.
It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realise the data transmission between wired and wireless devices.
It supports LoRaWAN Class C protocol. It can be widely applied in the IoT, centralised metering and industrial control etc.
Strap On Temperature Sensor with IP65 Housing
The TE-S range of strap-on temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The housing has a quick release lid for ease of installation and the sensor is housed in a shaped copper lug for surface temperature measurement.
