Max, Min, Average Module – IO6N1
£260.00 Exc. VAT

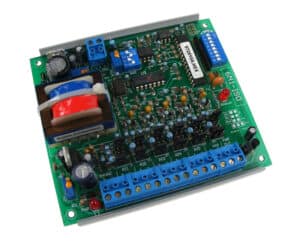

The IO6N1 is a microprocessor-controlled interface designed to provide maximum flexibility with a minimum cost.
Description
The IO6N1 is a microprocessor-controlled interface designed to provide maximum flexibility with a minimum cost. With a variety of standard inputs, the IO6N1 provides the user with the ability to interface several devices to the analog output. The IO6N1 can average two to six inputs, output the highest of two to six inputs, output the lowest of two to six inputs, or output the difference of two inputs. Input ranges are jumper selectable and all modes and analog output are DIP switch selectable. The output signal is optically isolated from input signals. The IO6N1 also accepts up to 6 digital inputs (binary sequence) and outputs a proportional analog signal. The power output terminal can be used for power if the inputs are only contact closures.
Specification
Supply Voltage: 24Vac (+/- 10%), 50/60Hz
Supply Current: 255 mA maximum
Power Out: 24Vdc or 15Vdc (Jumper selectable) 100 mA maximum
Input Mode (Six Analog)
Voltage Range/Impedance: 0…5Vdc @ 1M ohms / 0…10Vdc @ 20,000 ohms / 0…20Vdc @ 10,000 ohms
Current Range/Impedance: 0…20mA @ 249 ohms (All ranges jumper selectable)
Input Mode (Binary)
Six Digital: 15Vdc, 24Vdc or 24Vac +/-10% @ 100KΩ
One Analog Output: 0…5Vdc @ 1000 ohms / 0…10Vdc @ 1000 ohms / 0…20Vdc @ 1000 ohms / 0…20mA @ 500 ohms maximum / All ranges DIP switch selectable
Analog Mode Output Resolution: +/- 2% of full scale
Binary Mode Output Resolution: 64 steps of resolution
Dimensions: 10.16 x 11.75 x 2.54 cm
Mounting: DIN rail mounted
Operating Temperature: 0…70°C
Storage Temperature: -20…80°C
Operating Humidity: 10% to 95% non-condensing
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
