Adjustable Single Relay Module – IOVR1
£27.35 Exc. VAT

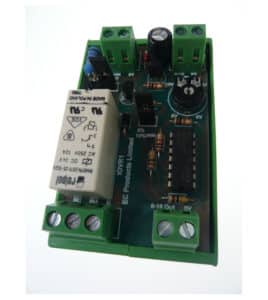

The IOVRI is an SPCO change over relay output from 0 to 10Vdc with a fully adjustable switch point.
Description
The IOVRI is an SPCO change over relay output from 0 to 10Vdc with a fully adjustable switch point.
The unit also has a buffered 0-10Vdc output which will allow one 0-10V input to be passed on to another device.

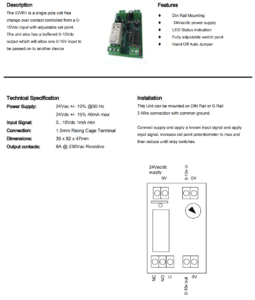

Specification
Power Supply: 24Vac +/- 10% @ 50Hz / 24Vdc +/- 15% 40mA max.
Input Signal: 0…10Vdc 1mA min.
Connection: 1.5mm rising cage terminal.
Dimensions: 35 x 82 x 47mm
Output contacts: 8A @ 230Vac (resistive)
| Weight | 0.31 kg |
|---|---|
| Dimensions | 6 × 8 × 5 cm |
