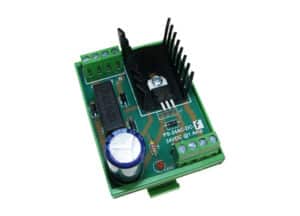

24Vac to 24Vdc @ 1A power supply (common 0V)
£45.00 Exc. VAT
This module is used to convert a 24Vac power supply into a regulated 1A 24Vdc output. The unit is DIN rail mounted and is available with a floating or earthed output.
Description
This module is used to convert a 24Vac power supply into a regulated 1A 24Vdc output. The unit is DIN rail mounted and is available with a floating or earthed output.

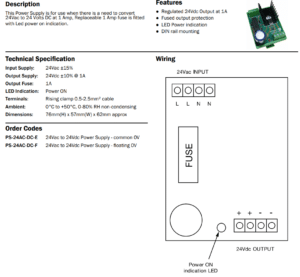

Specification
Input Supply:                    24Vac ± 15%
Output Supply:         24Vdc ± 10% @ 1A
Output Fuse:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1A
LED Indication:Â Â Â Â Â Â Â Â Â Power ON
Terminals:               Rising clamp 0.5 – 2.5mm² cable.
Ambient:                0˚C to +50˚C, 0 – 80% RH non-condensing
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â 76(H) x 57(W) x 62mm approx.
| Weight | 0.96 kg |
|---|---|
| Dimensions | 8 × 6 × 6 cm |
