FCU 24VAC Honeywell Linear Actuator M7410C1015
£119.00 Exc. VAT
Electrothermal Actuators are for use with the VFX range of Fan Coil valves and are used in heating, cooling, and air conditioning systems.
Out of stock
- Trend Actuator 3-pt for zone control, 6,5 mm 180/300 N, M6410/M7410
- Electrical actuator floating control.
- Protection class: IP43/IP42
- Position indication: with red indicator
- End switch function/capacity: SPDT; capacity 1 A inductive, 5 A resistive
- For M7410 models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable.
- Control input signal: 3-pt
- Stroke: 6.5mm
- Runtime: 150s
- 6,5 mm; 300 N; for valve series: V5825B, V5832B2, V5833A2
- Stem force: 300N
- Supply voltage: 24 Vac
- Manual operation: no
- End switches: no
- Cable length: 1.5m

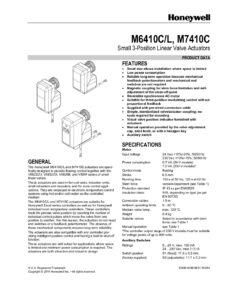

BMS Parts PDF Download
| Weight | 0.25 kg |
|---|
